EJ101IA-01H Innolux 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) EJ101IA-01H is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Pre Ver0.3 which was released out on 5 31 2013, EJ101IA-01H supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 229.46(W)×149.1(H)×4.56(D) mm, viewing area size of 220.26(W)×138.9(H) mm, with surface treament of Hard coating, net weight of 191g (Typ.). As a IPS, Normally Black, Transmissive LCM product, EJ101IA-01H can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. EJ101IA-01H utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Panel Model |
EJ101IA-01H |
|
Panel Brand |
Innolux |
|
Panel Size |
10.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1280(RGB)×800 , WXGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
216.96(W)×135.6(H) mm |
|
Bezel Opening |
220.26(W)×138.9(H) mm |
|
Outline Size |
229.46(W)×149.1(H) ×4.56(D) mm |
|
Surface |
Hard coating |
|
Brightness |
350 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
IPS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
10/15 (Typ.)(Tr/Td) |
|
Display Colors |
16.7M |
|
Lamp Type |
WLED , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
191g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 8-bit) , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

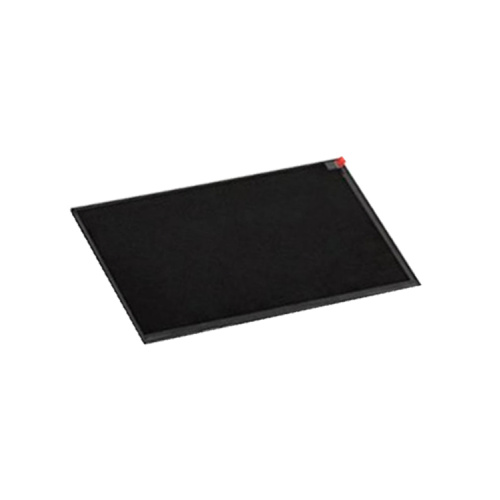

Product Picture:
