N101ICG-L11 Innolux 10.1 inch TFT-LCD

Innolux Corporation (hereafter called Innolux) N101ICG-L11 (Product Code: CMN1041) is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C . This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. N101ICG-L11 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 227.42(W)×147.69(H)×4.85(D) mm, viewing area size of 219.31(W)×138.25(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 120/135g (Typ./Max.). As a AAS, Normally Black, Transmissive LCM product, N101ICG-L11 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 3 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, With LED Driver. N101ICG-L11 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

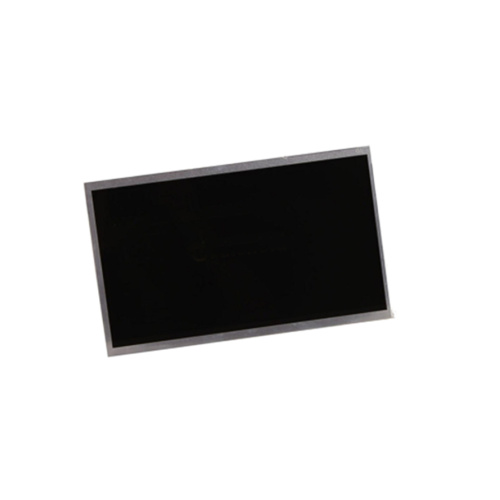

Product Picture:
