HJ101IA-01I Chimei Innolux 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
HJ101IA-01I is a 10.1" diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chimei Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -10 ~ 50°C , a storage temperature range of -20 ~ 60°C . This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. HJ101IA-01I supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 228.6(W)×149.2(H)×4.59(D) mm, viewing area size of 220.46(W)×139.1(H) mm, with surface treament of Hard coating, net weight of 160g (Max.). As a IPS, Normally Black, Transmissive LCM product, HJ101IA-01I can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. HJ101IA-01I utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
HJ101IA-01I |
|
Manufacturer |
Chimei Innolux |
|
Screen Size |
10.1 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
1280(RGB)×800 (WXGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
216.96 × 135.6 (H×V) |
|
Outline(mm) |
228.6 × 149.2 × 4.59 (H×V×D) |
|
Bezel Area(mm) |
220.46 × 139.1 (H×V) |
|
Treatment |
Hard coating |
|
Luminance |
350 cd/m² (Typ.) |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Response |
10/15 (Typ.)(Tr/Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
IPS, Normally Black, Transmissive |
|
Color Depth |
16.7M |
|
Backlight |
WLED , With LED Driver |
|
Mass |
160g (Max.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 8-bit) , 40 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 50 °C |

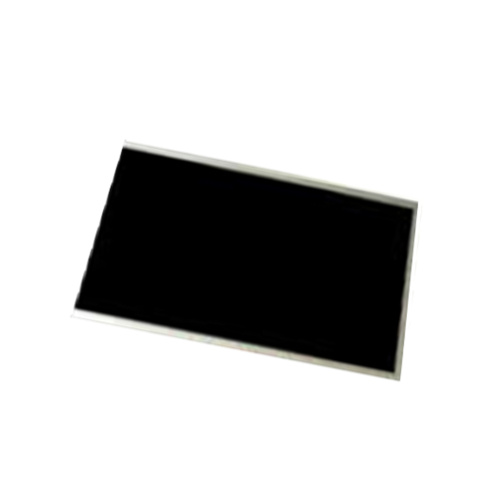

Product Picture:
