DJ090IA-02A Innolux 9.0 inch TFT-LCD

Innolux Corporation (hereafter called Innolux) DJ090IA-02A is a 9.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 95°C ,This Innolux TFT-LCD is a 9.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. DJ090IA-02A supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 198.912(W)×111.888(H) mm, outline size of 210.5(W)×123.7(H)×9.7(D) mm, viewing area size of 200.912(W)×113.888(H) mm, with surface treament of Antiglare, net weight of 235g (Max.). As a AAS, Normally Black, Transmissive LCM product, DJ090IA-02A can provides 750 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 7S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. DJ090IA-02A utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

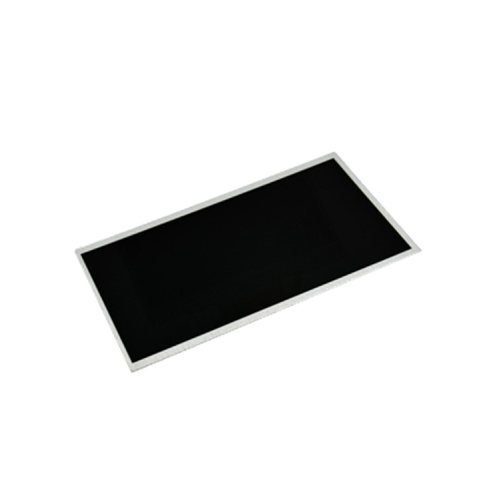

Product Picture:
