DJ090IA-01A Innolux 9.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Innolux Corporation (hereafter called Innolux) DJ090IA-01A is a 9.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.This Innolux TFT-LCD is a 9.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.3 which was released out on 6 2 2017, DJ090IA-01A supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 198.912(W)×111.888(H) mm, outline size of 211.2(W)×125.3(H)×9.55(D) mm, viewing area size of 201.912(W)×114.888(H) mm, with surface treament of Antiglare, net weight of 230g (Max.). As a AAS, Normally Black, Transmissive LCM product, DJ090IA-01A can provides 750 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 7S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. DJ090IA-01A utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Model	DJ090IA-01A
Brand	Innolux
Diagonal Size	9.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	1280(RGB)×720 [WXGA]
Configuration	RGB Vertical Stripe
Active Area	198.912(H)×111.888(V) mm
Outline Dim.	211.2(H)×125.3(V) ×9.55(D) mm
Bezel Area	201.912(H)×114.888(V) mm
Treatment	Antiglare
Luminance	750 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	15/10 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Support Color	16.7M 70% NTSC
Light Source	WLED [7S4P] , 20K hours , W/O Driver
Weight	230g (Max.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit) , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C

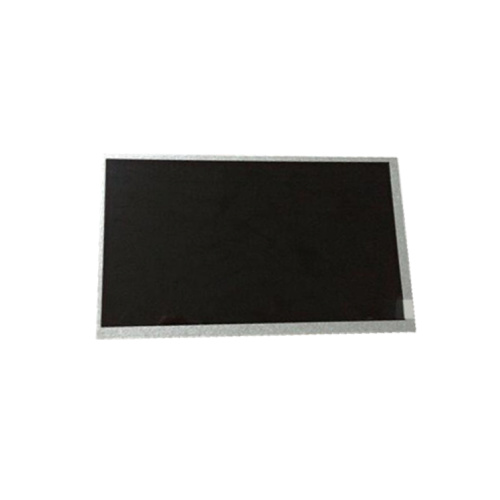

Product Picture:

DJ090IA-01A
