HJ090NA-01L Innolux 9.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) HJ090NA-01L is a 9.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 9.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Pre Ver01 which was released out on 1 25 2013, HJ090NA-01L supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 193.92(W)×121.2(H) mm, outline size of 206.76(W)×135.06(H)×5(D) mm, viewing area size of 196.72(W)×124.00(H) mm, with surface treament of Hard coating, net weight of TBD. As a TN, Normally White, Transmissive LCM product, HJ090NA-01L can provides 250 cd/m² display brightness 700:1 transimissive contrast ratio, 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. HJ090NA-01L utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
HJ090NA-01L
Panel Brand
Innolux
Panel Size
9.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1280(RGB)×800 , WXGA
Pixel Format
RGB Vertical Stripe
Display Area
193.92(W)×121.2(H) mm
Bezel Opening
196.72(W)×124.00(H) mm
Outline Size
206.76(W)×135.06(H) ×5(D) mm
Surface
Hard coating
Brightness
250 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (TM)
Viewing Angle
70/70/70/50 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
12 o'clock
Response Time
10/15 (Typ.)(Tr/Td)
Display Colors
262K/16.7M
Lamp Type
3S8P WLED , 20K hours , Without Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
TBD
Signal Interface
LVDS (1 ch, 6/8-bit) , 51 pins Connector
Input Voltage
3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)
Environment
Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

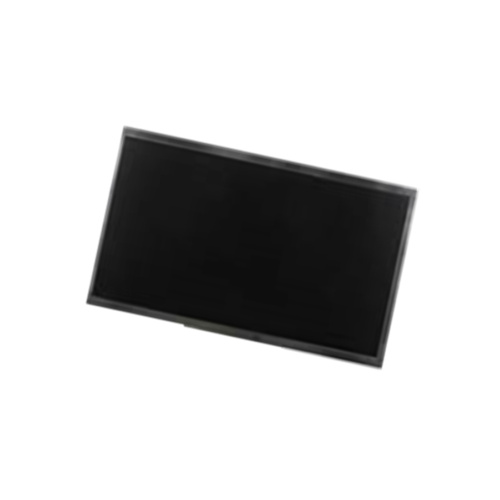

Product Picture:
