EJ090NA-01B Chimei Innolux 9.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
EJ090NA-01B is a 9.0 inch diagonal a-Si TFT-LCD display screen product from Chimei Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 9.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Final Ver01 which was released out on 12 7 2011, EJ090NA-01B supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 193.92(W)×121.2(H) mm, outline size of 206.76(W)×135.06(H)×5(D) mm, viewing area size of 196.72(W)×124.00(H) mm, with surface treament of Hard coating, net weight of 178g (Typ.). As a TN, Normally White, Transmissive LCM product, EJ090NA-01B can provides 250 cd/m² display brightness 700:1 transimissive contrast ratio, 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 70% (NTSC). This product adopted 3S12P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. EJ090NA-01B utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
EJ090NA-01B 1 Compatible |
|
Manufacturer |
Chimei Innolux |
|
Screen Size |
9.0 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
1280(RGB)×800 (WXGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
193.92 × 121.2 (H×V) |
|
Outline(mm) |
206.76 × 135.06 × 5 (H×V×D) |
|
Bezel Area(mm) |
196.72 × 124.00 (H×V) |
|
Treatment |
Hard coating |
|
Luminance |
250 cd/m² (Typ.) |
|
Contrast Ratio |
700 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/70/50 (Typ.)(CR≥10) |
|
Response |
10/15 (Typ.)(Tr/Td) ms |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K/16.2M 70% NTSC |
|
Backlight |
3S12P WLED , 20K hours , No Driver |
|
Mass |
178g (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , Connector 51 pins |
|
Voltage Supply |
3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
|
Max. Ratings |
Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 50 °C |

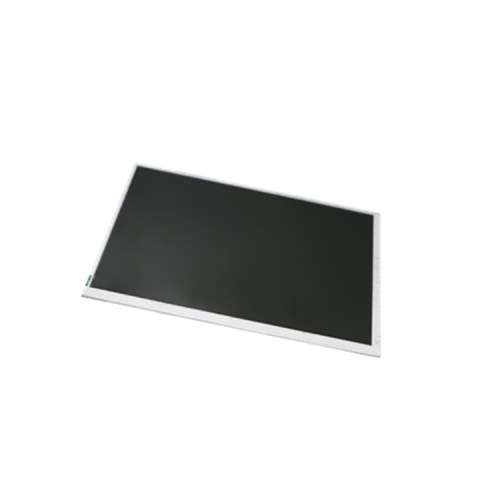

Product Picture:
