N080JCE-G41 Rev.A1 Innolux 8.0 inch TFT-LCD

N080JCE-G41 Rev.A1 (Alias: 0V2XPV) is a 8.0" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C.This Innolux TFT-LCD is a 8.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen.  N080JCE-G41 Rev.A1 supports display 1200(RGB)×1920 (WUXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 107.64(W)×172.224(H) mm, outline size of 114.6(W)×184.6(H)×3.65(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 80.0g (Max.). As a AAS, Normally Black, Transmissive LCM product, N080JCE-G41 Rev.A1 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. N080JCE-G41 Rev.A1 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 45 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

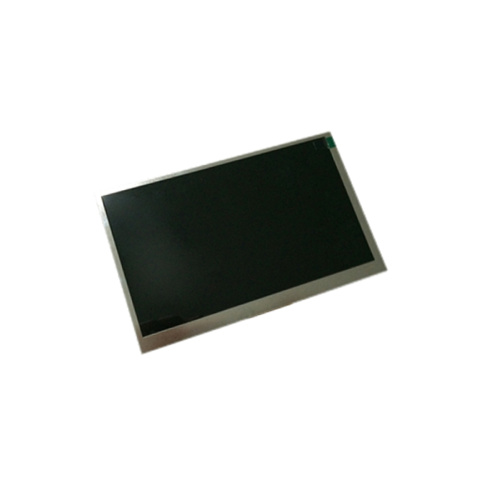

Product Picture:
