P080LDN-DB4 Innolux 8.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) P080LDN-DB4 is a 8.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen On-Cell Touch. This Innolux TFT-LCD is a 8.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Rev.V1.2 which was released out on 7 8 2016, P080LDN-DB4 supports display 1200(RGB)×1920 (WUXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 107.64(W)×172.224(H) mm, outline size of 120.54(W)×207.15(H) mm, net weight of 130g (Max.). As a IPS, Normally Black, Transmissive Assembly product, P080LDN-DB4 can provides 290 cd/m² display brightness 900:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. P080LDN-DB4 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 44 pins Connector with power supply voltage of 1.8/3.3V (Typ.)(VDDIO/VDD). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model |
P080LDN-DB4 |
|
Brand |
Innolux |
|
Diagonal Size |
8.0 inch |
|
Pixel Format |
1200(RGB)×1920 [WUXGA] |
|
Active Area |
107.64(H)×172.224(V) mm |
|
Luminance |
290 cd/m² (Typ.) |
|
View Direction |
Symmetry |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Support Color |
16.7M 70% NTSC |
|
Weight |
130g (Max.) |
|
Frame Rate |
60Hz |
|
Type |
a-Si TFT-LCD , Assembly |
|
Configuration |
RGB Vertical Stripe |
|
Outline Dim. |
120.54(H)×207.15(V) mm |
|
Contrast Ratio |
900:1 (Typ.) (TM) |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Light Source |
WLED [6S4P] , W/O Driver |
|
Touch Panel |
On-Cell Touch |
|
Interface Type |
MIPI (4 data lanes) 44 pins Connector |
|
Power Supply |
1.8/3.3V (Typ.)(VDDIO/VDD) |

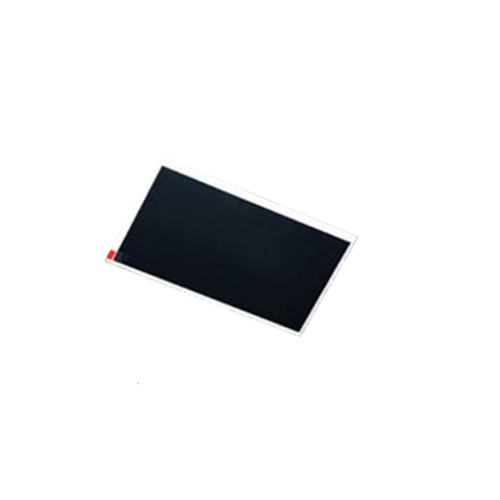

Product Picture:
