DJ080IA-10A Innolux 8.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) DJ080IA-10A is a 8.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 8.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.1 which was released out on 9 7 2016, DJ080IA-10A supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H)×6.7(D) mm, viewing area size of 179.64(W)×102.36(H) mm, with surface treament of Antiglare, net weight of 225g (Max.). As a AAS, Normally Black, Transmissive LCM product, DJ080IA-10A can provides 750 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 11/14 (Typ.)(Tr/Td ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. DJ080IA-10A utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/12.8/24.0/-5.6V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Panel Model |
DJ080IA-10A |
|
Panel Brand |
Innolux |
|
Panel Size |
8.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1024(RGB)×600 , WSVGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
176.64(W)×99.36(H) mm |
|
Bezel Opening |
179.64(W)×102.36(H) mm |
|
Outline Size |
192.8(W)×116.9(H) ×6.7(D) mm |
|
Surface |
Antiglare |
|
Brightness |
750 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
AAS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
11/14 (Typ.)(Tr/Td |
|
Display Colors |
262K/16.7M 70% NTSC |
|
Lamp Type |
WLED , 20K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
225g (Max.) |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 40 pins FPC |
|
Input Voltage |
3.3/12.8/24.0/-5.6V (Typ.)(VDD/AVDD/VGH/VGL) |
|
Environment |
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |

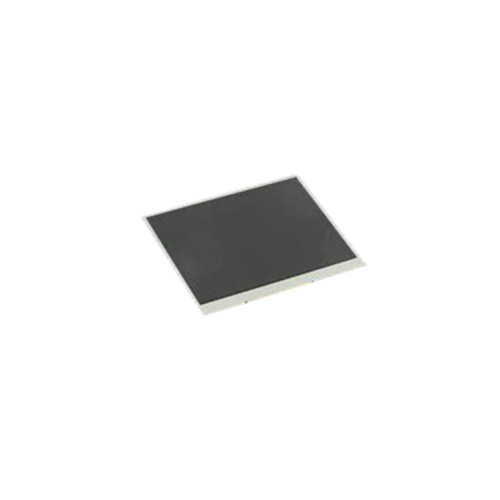

Product Picture:
