HJ080NA-04L Chimei Innolux 8.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

HJ080NA-04L is a 8.0 inch diagonal a-Si TFT-LCD display screen product from Chimei Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 8.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Pre Ver.01 which was released out on 12 20 2012, HJ080NA-04L supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 162.048(W)×121.536(H) mm, outline size of 174(W)×136(H)×2.65(D) mm, viewing area size of 165.2(W)×124.7(H) mm, with surface treament of Clear, net weight of 120g. As a TN, Normally White, Transmissive LCM product, HJ080NA-04L can provides 250 cd/m² display brightness 700:1 transimissive contrast ratio, 75/75/75/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 4:30 o'clock , and response time of 6/14 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S7P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. HJ080NA-04L utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/11.5/22/-7V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Panel Model	HJ080NA-04L
Panel Brand	Chimei Innolux
Panel Size	8.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768 , XGA
Pixel Format	RGB Vertical Stripe
Display Area	162.048(W)×121.536(H) mm
Bezel Opening	165.2(W)×124.7(H) mm
Outline Size	174(W)×136(H) ×2.65(D) mm
Surface	Clear
Brightness	250 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	75/75/75/75 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	4:30 o'clock
Response Time	6/14 (Typ.)(Tr/Td)
Display Colors	262K/16.7M 50% NTSC
Lamp Type	3S7P WLED , 15K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	120g
Signal Interface	LVDS (1 ch, 6/8-bit) , 40 pins FPC
Input Voltage	3.3/11.5/22/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Product Picture:

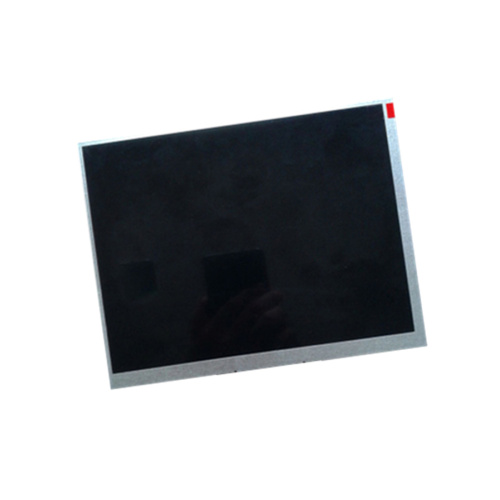

HJ080NA-04L
