G075ADE-T01 Innolux 7.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) G075ADE-T01 is a 7.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 7.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.1 which was released out on 2 26 2015, G075ADE-T01 supports display 1200×900 with aspect ratio of 4:3 (W:H). As for mechanical detail, it features active area of 152.4(W)×114.3(H) mm, outline size of 169.7(W)×139.7(H)×6.5(D) mm, viewing area size of 155.4(W)×117.3(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 172g (Max.). As a TN, Normally White, Transflective LCM product, G075ADE-T01 can provides 120 cd/m² display brightness 85:1 transimissive contrast ratio, 4:1 (Typ.) reflective contrast ratio, 15/15/15/15 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 30/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 29% (NTSC). This product adopted 4S3P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. G075ADE-T01 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 55 pins FPC with power supply voltage of 1.8/9.6/18/-7V (Typ.)(VDD/VAA/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model |
G075ADE-T01 |
|
Brand |
Innolux |
|
Diagonal Size |
7.5 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
1200×900 |
|
Active Area |
152.4(H)×114.3(V) mm |
|
Outline Dim. |
169.7(H)×139.7(V) ×6.5(D) mm |
|
Bezel Area |
155.4(H)×117.3(V) mm |
|
Treatment |
Antiglare (Haze 25%), Hard coating (3H) |
|
Luminance |
120 cd/m² (Typ.) |
|
Contrast Ratio |
85:1 (Typ.) (TM) 4:1 (Typ.) (RF) |
|
Response Time |
30/20 (Typ.)(Tr/Td) |
|
Viewing Angle |
15/15/15/15 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transflective |
|
Support Color |
262K 29% NTSC |
|
Light Source |
WLED [4S3P] , W/O Driver |
|
Weight |
172g (Max.) |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
TTL (1 ch, 6-bit) , 55 pins FPC |
|
Power Supply |
1.8/9.6/18/-7V (Typ.)(VDD/VAA/VGH/VGL) |
|
Environment |
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

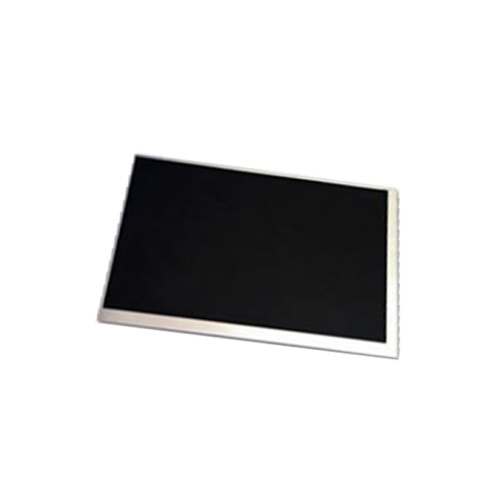

Product Picture:
