DE070IA-18B Innolux 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
DE070IA-18B is a 7.0" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C.This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller , Backlight Cable and Tft Color Screen. DE070IA-18B supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165.4(W)×107.24(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 226g (Typ.). As a IPS, Normally Black, Transmissive LCM product, DE070IA-18B can provides 750 cd/m² display brightness 1000:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 28 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. DE070IA-18B utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model
DE070IA-18B
Brand
Innolux
Diagonal Size
7.0 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
800(RGB)×480 [WVGA]
Configuration
RGB Vertical Stripe
Active Area
152.4(H)×91.44(V) mm
Outline Dim.
165.4(H)×107.24(V) mm
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
750 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
28 (Typ.)(G to G)
Operating Mode
IPS, Normally Black, Transmissive
Support Color
16.7M 75% NTSC
Light Source
WLED [6S2P] , 10K hours , W/O Driver
Weight
226g (Typ.)
Frame Rate
60Hz
Touch Panel
Without
Interface Type
Parallel RGB (1 ch, 8-bit) + SPI , 60 pins FPC
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.0G (19.6 m/s²)

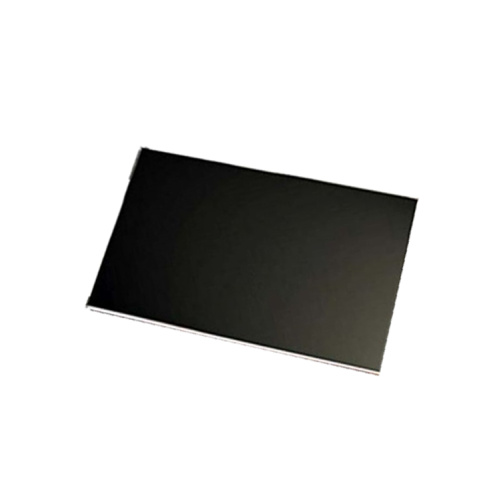

Product Picture:
