NJ070NA-23A Innolux 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) NJ070NA-23A is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Final Ver02 which was released out on 2 27 2017, NJ070NA-23A supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.214(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×5.1(D) mm, viewing area size of 157.21(W)×89.49(H) mm, with surface treament of Hard coating, net weight of 140g (Typ.). As a TN, Normally White, Transmissive LCM product, NJ070NA-23A can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. NJ070NA-23A utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model
NJ070NA-23A
Brand
Innolux
Diagonal Size
7.0 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1024(RGB)×600 [WSVGA]
Configuration
RGB Vertical Stripe
Active Area
154.214(H)×85.92(V) mm
Outline Dim.
164.9(H)×100(V) ×5.1(D) mm
Bezel Area
157.21(H)×89.49(V) mm
Treatment
Hard coating
Luminance
500 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (TM)
View Direction
6 o'clock
Response Time
10/15 (Typ.)(Tr/Td)
Viewing Angle
75/75/70/75 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
262K/16.7M
Light Source
WLED , 20K hours , W/O Driver
Weight
140g (Typ.)
Frame Rate
60Hz
Touch Panel
Without
Interface Type
LVDS (1 ch, 6/8-bit) , 40 pins FPC
Power Supply
3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

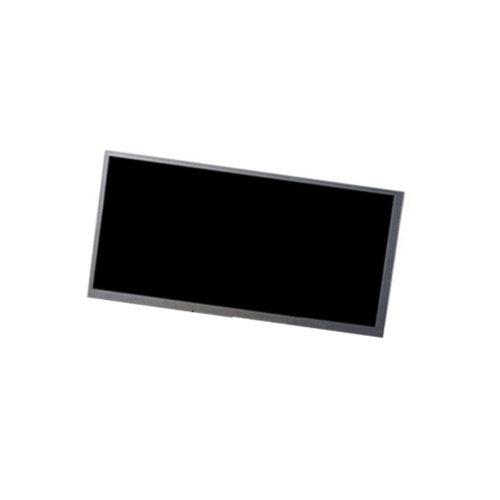

Product Picture:
