Q070LRE-LA1 Chimei Innolux 7.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Q070LRE-LA1 is a 7.0 inch diagonal a-Si TFT-LCD display screen product from Chimei Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Final Ver1.0 which was released out on 9 6 2013, Q070LRE-LA1 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 164.1(W)×102.6(H)×4.59(D) mm, with surface treament of Glare (Haze 0%), net weight of 105g (Max.). As a IPS, Normally Black, Transmissive LCM product, Q070LRE-LA1 can provides 350 cd/m² display brightness 700:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 4S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. Q070LRE-LA1 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 3.7V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Model	Q070LRE-LA1
Brand	Chimei Innolux
Diagonal Size	7.0 inch
Pixel Format	1024(RGB)×600 [WSVGA]
Active Area	153.6(H)×90(V) mm
Luminance	350 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Support Color	16.7M 50% NTSC
Weight	105g (Max.)
Frame Rate	60Hz
Type	a-Si TFT-LCD , LCM
Configuration	RGB Vertical Stripe
Outline Dim.	164.1(H)×102.6(V) ×4.59(D) mm
Treatment	Glare (Haze 0%)
Contrast Ratio	700:1 (Typ.) (TM)
Response Time	30 (Typ.)(Tr+Td)
Operating Mode	IPS, Normally Black, Transmissive
Light Source	WLED [4S5P] , 20K hours , W/O Driver
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit) 31 pins Connector
Power Supply	3.7V (Typ.)
Environment	Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C

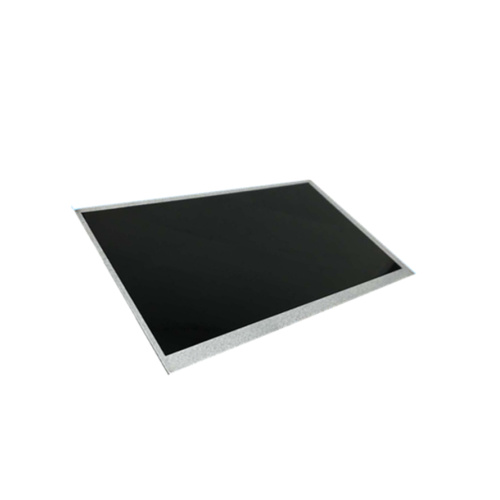

Product Picture:

Q070LRE-LA1
