N070ICP-G01 (BL) Innolux 7.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Innolux Corporation (hereafter called Innolux) N070ICP-G01 (BL) is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen PCAP. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen.Based on datasheet with version of Pre Ver04 which was released out on 9 24 2014, N070ICP-G01 (BL) supports display 800(RGB)×1280 (WXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 94.2(W)×150.72(H) mm, outline size of 110.21(W)×189.21(H)×5.38(D) mm, with surface treament of Hard coating (7H), net weight of 133g (Max.). As a AAS, Normally Black, Transmissive Assembly product, N070ICP-G01 (BL) can provides 380 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 11/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. N070ICP-G01 (BL) utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 39 pins Connector with power supply voltage of 1.8/3.3V (Typ.)(V18/V33). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Model	N070ICP-G01 (BL)
Brand	Innolux
Diagonal Size	7.0 inch
Type	a-Si TFT-LCD, Assembly
Pixel Format	800(RGB)×1280 [WXGA]
Configuration	RGB Vertical Stripe
Active Area	94.2(H)×150.72(V) mm
Outline Dim.	110.21(H)×189.21(V) ×5.38(D) mm
Treatment	Hard coating (7H)
Luminance	380 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	11/9 (Typ.)(Tr/Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Support Color	16.7M
Light Source	WLED [3S6P] , 15K hours , W/O Driver
Weight	133g (Max.)
Frame Rate	60Hz
Touch Panel	PCAP
Interface Type	MIPI (4 data lanes) , 39 pins Connector
Power Supply	1.8/3.3V (Typ.)(V18/V33)
Environment	Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

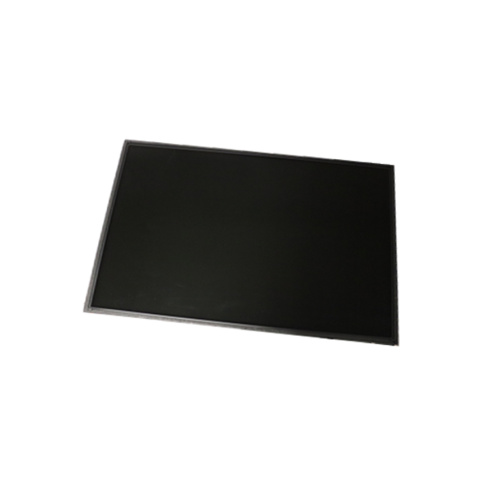

Product Picture:

N070ICP-G01 (BL)
