N070ICN-GB1 Innolux 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) N070ICN-GB1 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of APP Ver0.0 which was released out on 11 7 2013, N070ICN-GB1 supports display 800(RGB)×1280 (WXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 94.2(W)×150.72(H) mm, outline size of 105.62(W)×163.27(H)×4.56(D) mm, viewing area size of 97.35(W)×153.82(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 95.0g (Max.). As a IPS, Normally Black, Transmissive LCM product, N070ICN-GB1 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 11/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. N070ICN-GB1 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 1.8/3.3V (Typ.)(VDDI/VCI). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
N070ICN-GB1
Panel Brand
Innolux
Panel Size
7.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
800(RGB)×1280 , WXGA
Pixel Format
RGB Vertical Stripe
Display Area
94.2(W)×150.72(H) mm
Bezel Opening
97.35(W)×153.82(H) mm
Outline Size
105.62(W)×163.27(H) ×4.56(D) mm
Surface
Glare (Haze 0%), Hard coating (3H)
Brightness
300 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response Time
11/9 (Typ.)(Tr/Td)
Display Colors
16.7M 60% NTSC
Lamp Type
3S6P WLED , 15K hours , Without Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
95.0g (Max.)
Signal Interface
MIPI (4 data lanes) , 31 pins Connector
Input Voltage
1.8/3.3V (Typ.)(VDDI/VCI)
Environment
Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C

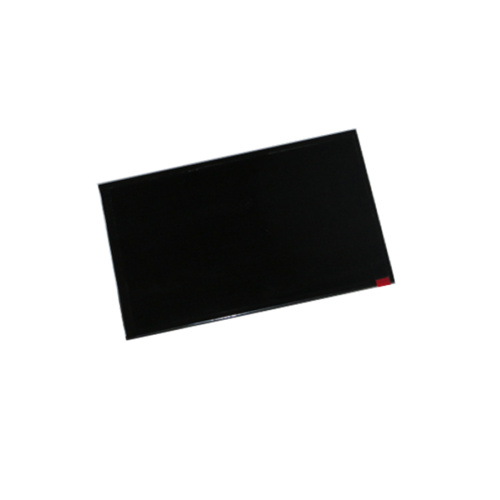

Product Picture:
