Chimei Innolux Corporation (hereafter called Chimei Innolux) HJ070NA-13D is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Pre Ver01 which was released out on 11 19 2012, HJ070NA-13D supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 165.25(W)×104.65(H)×2.9(D) mm, viewing area size of 156.42(W)×92.80(H) mm, with surface treament of Glare (Haze 0%), net weight of 100g (Max.). As a TN, Normally White, Transmissive LCM product, HJ070NA-13D can provides 350 cd/m² display brightness 700:1 transimissive contrast ratio, 75/75/75/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 4S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. HJ070NA-13D utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model Name
HJ070NA-13D 1 Compatible
Manufacturer
Chimei Innolux
Screen Size
7.0 inch
Screen Type
LCM , a-Si TFT-LCD
Pixel Number
1024(RGB)×600 (WSVGA)
Arrangement
RGB Vertical Stripe
Active Area(mm)
153.6 × 90 (H×V)
Outline(mm)
165.25 × 104.65 × 2.9 (H×V×D)
Bezel Area(mm)
156.42 × 92.80 (H×V)
Treatment
Glare (Haze 0%)
Luminance
350 cd/m² (Typ.)
Contrast Ratio
700 : 1 (Typ.) (TM)
Viewing Angle
75/75/75/70 (Typ.)(CR≥10)
Response
10/15 (Typ.)(Tr/Td) ms
Good View at
12 o'clock
Work Mode
TN, Normally White, Transmissive
Color Depth
262K/16.7M
Backlight
4S6P WLED , 20K hours , No Driver
Mass
100g (Max.)
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (1 ch, 6/8-bit) , 39 pins FPC
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C

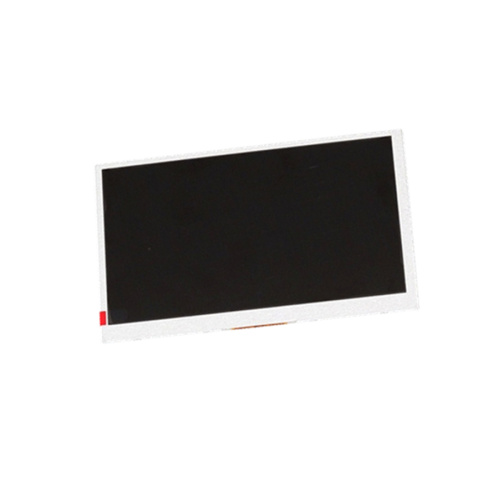

Product Picture:
