EJ070NA-01K Chimei Innolux 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
EJ070NA-01K is a 7.0" diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chimei Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 60°C , a storage temperature range of -30 ~ 70°C . This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. EJ070NA-01K supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.08(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×3.65(D) mm, viewing area size of 156.7(W)×89.1(H) mm, with surface treament of Antiglare, net weight of 117g (Typ.). As a TN, Normally White, Transmissive LCM product, EJ070NA-01K can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. EJ070NA-01K utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL).
We are able to offer AD board for this display to support VGA video input
Panel Model
EJ070NA-01K
Panel Brand
Chimei Innolux
Panel Size
7.0"
Resolution
800(RGB)×480 , WVGA
Display Area
154.08(W)×85.92(H) mm
Outline Size
164.9(W)×100(H) ×3.65(D) mm
Brightness
400 cd/m² (Typ.)
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Best View on
6 o'clock
Display Colors
262K/16.7M 50% NTSC
Weight
117g (Typ.)
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Bezel Opening
156.7(W)×89.1(H) mm
Surface
Antiglare
Contrast Ratio
500:1 (Typ.) (TM)
Display Mode
TN, Normally White, Transmissive
Response Time
10/15 (Typ.)(Tr/Td)
Lamp Type
WLED , 20K hours , Without Driver
Touch Screen
Without
Signal Interface
Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC
Input Voltage
3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment
Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

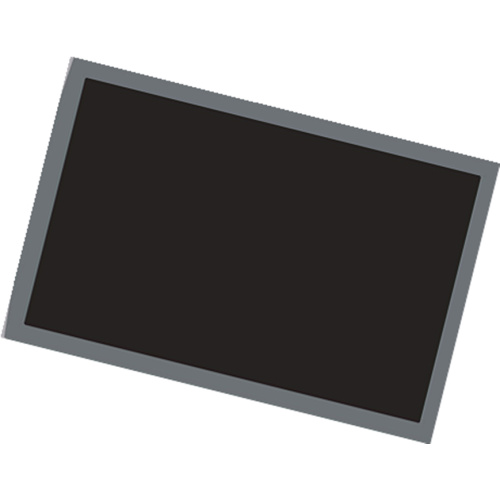

Product Picture:
