G070Y3-T01 Chimei Innolux 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Chimei Innolux Corporation (hereafter called Chimei Innolux) G070Y3-T01 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.5 which was released out on 7 13 2011, G070Y3-T01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 17:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 156(W)×82.8(H) mm, outline size of 168(W)×94(H)×6.65(D) mm, viewing area size of 159.3(W)×86.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 180g (Typ.). As a TN, Normally White, Transmissive LCM product, G070Y3-T01 can provides 600 cd/m² display brightness 650:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted 9S3P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. G070Y3-T01 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/10.5/18/-7V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model Name
G070Y3-T01
Manufacturer
Chimei Innolux
Screen Size
7.0 inch
Screen Type
LCM, a-Si TFT-LCD
Pixel Number
800(RGB)×480 (WVGA)
Arrangement
RGB Vertical Stripe
Active Area(mm)
156 × 82.8 (H×V)
Outline(mm)
168 × 94 × 6.65 (H×V×D)
Bezel Area(mm)
159.3 × 86.0 (H×V)
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
600 cd/m² (Typ.)
Contrast Ratio
650 : 1 (Typ.) (TM)
Viewing Angle
70/70/60/60 (Typ.)(CR≥10)
Response
5/11 (Typ.)(Tr/Td) ms
Good View at
6 o'clock
Work Mode
TN, Normally White, Transmissive
Color Depth
262K 60% NTSC
Backlight
9S3P WLED , 30K hours , No Driver
Mass
180g (Typ.)
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
TTL (1 ch, 6-bit) , FPC 50 pins
Voltage Supply
3.3/10.5/18/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Max. Ratings
Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²)

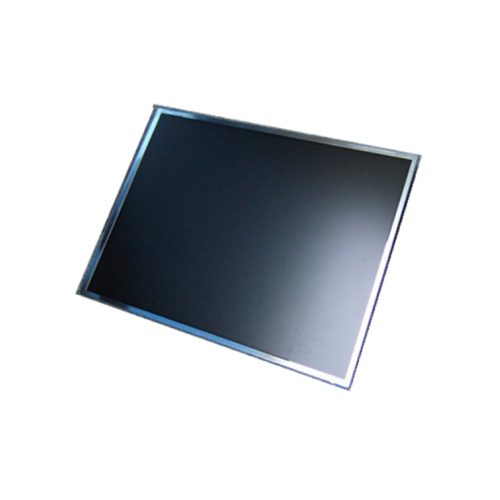

Product Picture:
