G070Y2-T02 Innolux 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
G070Y2-T02 is a 7.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen.On the basis of latest version datasheet Ver2.3 which was released out on 12 16 2015, G070Y2-T02 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104(H)×6.83(D) mm, viewing area size of 154.6(W)×93.64(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 132±15g. As a TN, Normally White, Transmissive LCM product, G070Y2-T02 can provides 500 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 72% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, external backlight driver is additionally needed. G070Y2-T02 utilizes TTL (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/10/19/-6.8V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
G070Y2-T02
Panel Brand
Innolux
Panel Size
7.0"
Resolution
800(RGB)×480 , WVGA
Display Area
152.4(W)×91.44(H) mm
Outline Size
165(W)×104(H) ×6.83(D) mm
Brightness
500 cd/m² (Typ.)
Viewing Angle
70/70/60/60 (Typ.)(CR≥10)
Display Colors
262K/16.2M 72% NTSC
Frequency
60Hz
Weight
132±15g
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Bezel Opening
154.6(W)×93.64(H) mm
Surface
Antiglare, Hard coating (3H)
Contrast Ratio
600:1 (Typ.) (TM)
Display Mode
TN, Normally White, Transmissive
Response Time
5/11 (Typ.)(Tr/Td)
Lamp Type
7S2P WLED , 50K hours , Without Driver
Touch Screen
Without
Signal Interface
TTL (1 ch, 6/8-bit) , 60 pins FPC
Input Voltage
3.3/10/19/-6.8V (Typ.)(VCC/AVDD/VGH/VGL)
Environment
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²)

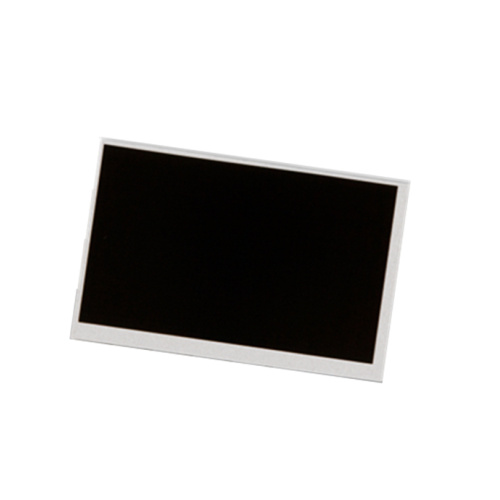

Product Picture:
