PJ050IA-05L Innolux 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
PJ050IA-05L is a 5.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver0.2 which was released out on 2 10 2016, PJ050IA-05L supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 294 PPI. As for mechanical detail, it features active area of 62.1(W)×110.4(H) mm, outline size of 64.18(W)×117.56(H)×1.42(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 17.2g. As a IPS, Normally Black, Transmissive LCM product, PJ050IA-05L can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. PJ050IA-05L utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 1.8/5.4/-5.4V (Typ.)(VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
PJ050IA-05L |
|
Manufacturer |
Innolux |
|
Screen Size |
5.0 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
720(RGB)×1280 (WXGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
62.1 × 110.4 (H×V) |
|
Outline(mm) |
64.18 × 117.56 × 1.42 (H×V×D) |
|
Treatment |
Glare (Haze 0%), Hard coating (3H) |
|
Luminance |
450 cd/m² (Typ.) |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Response |
25 (Typ.)(Tr+Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
IPS, Normally Black, Transmissive |
|
Color Depth |
16.7M 72% NTSC |
|
Backlight |
6S2P WLED , No Driver |
|
Mass |
17.2g |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
MIPI (4 data lanes) , Connector 30 pins |
|
Voltage Supply |
1.8/5.4/-5.4V (Typ.)(VDDI/AVDD/AVEE) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

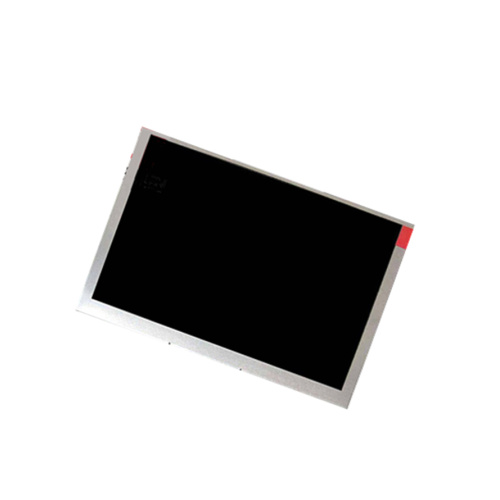

Product Picture:
