ZD050NA-05E Innolux 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) ZD050NA-05E is a 5.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen PCAP. This Innolux TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Fian Ver.01 which was released out on 12 16 2015, ZD050NA-05E supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 110.88(W)×62.832(H) mm, outline size of 132.7(W)×80.2(H) mm, with surface treament of Antiglare, net weight of 96.0g (Typ.). As a TN, Normally White, Transmissive LCM product, ZD050NA-05E can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. ZD050NA-05E utilizes TTL (1 ch, 8-bit) as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 1.8/3.3V (Typ.)(DVDD/AVDD). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Panel Model |
ZD050NA-05E |
|
Panel Brand |
Innolux |
|
Panel Size |
5.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
480(RGB)×272 , WQVGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
110.88(W)×62.832(H) mm |
|
Outline Size |
132.7(W)×80.2(H) mm |
|
Surface |
Antiglare |
|
Brightness |
400 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
10/15 (Typ.)(Tr/Td) |
|
Display Colors |
16.7M 50% NTSC |
|
Lamp Type |
6S2P WLED , 20K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
PCAP |
|
Panel Weight |
96.0g (Typ.) |
|
Signal Interface |
TTL (1 ch, 8-bit) , 67 pins FPC |
|
Input Voltage |
1.8/3.3V (Typ.)(DVDD/AVDD) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

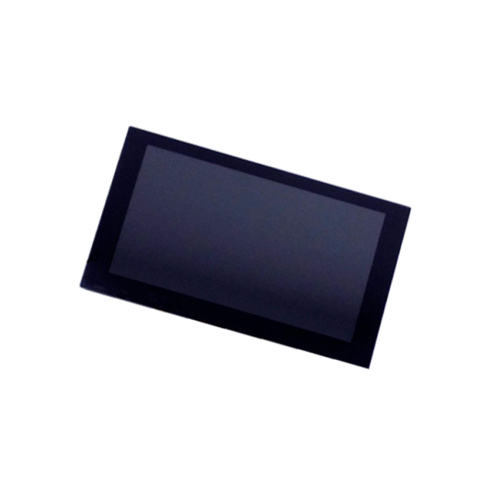

Product Picture:
