PJ050IA-14A Innolux 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) PJ050IA-14A is a 5.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver1.1 which was released out on 4 1 2014, PJ050IA-14A supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 294 PPI. As for mechanical detail, it features active area of 62.1(W)×110.4(H) mm, outline size of 66.1(W)×119.54(H) mm, with surface treament of Antiglare. As a IPS, Normally Black, Transmissive LCM product, PJ050IA-14A can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. PJ050IA-14A utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 34 pins FPC with power supply voltage of 1.8/5.4/-5.4V (Typ.)(IOVCC/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
PJ050IA-14A |
|
Manufacturer |
Innolux |
|
Screen Size |
5.0 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
720(RGB)×1280 (WXGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
62.1 × 110.4 (H×V) |
|
Outline(mm) |
66.1 × 119.54 (H×V×D) |
|
Treatment |
Antiglare |
|
Luminance |
350 cd/m² (Typ.) |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Response |
20/20 (Typ.)(Tr/Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
IPS, Normally Black, Transmissive |
|
Color Depth |
16.7M 70% NTSC |
|
Backlight |
5S2P WLED , No Driver |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
MIPI (4 data lanes) , FPC 34 pins |
|
Voltage Supply |
1.8/5.4/-5.4V (Typ.)(IOVCC/VSP/VSN) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

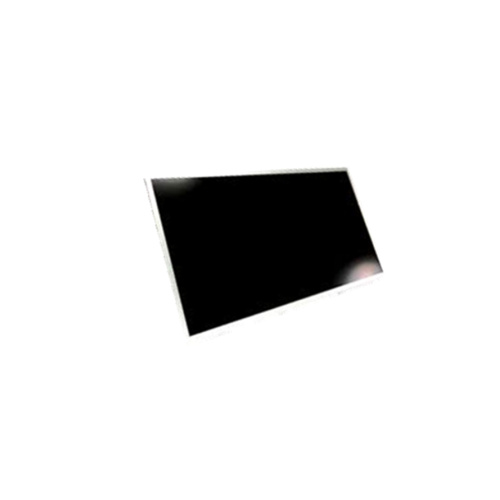

Product Picture:
