AT043TN25 V.2 Chimei Innolux 4.3 inch TFT-LCD

Chimei Innolux Corporation (hereafter called Chimei Innolux) AT043TN25 V.2 (Alias: AT043TN25 V2) is a 4.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.  Innolux TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Final Ver04 which was released out on 11 9 2017, AT043TN25 V.2 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×3.1(D) mm, viewing area size of 98.7(W)×57.5(H) mm, with surface treament of Antiglare, net weight of 45.0g (Typ.). As a TN, Normally White, Transmissive LCM product, AT043TN25 V.2 can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 8S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AT043TN25 V.2 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

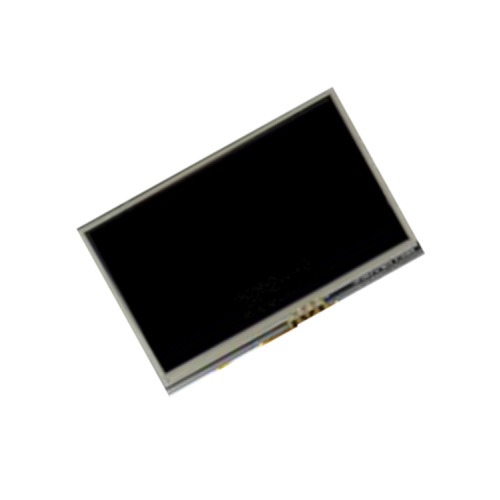

Product Picture:
