EJ050NA-01G Innolux 5 inch TFT
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
EJ050NA-01G is a 5.0 inch diagonal a-Si TFT-LCD display screen product from Chimei Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Final Ver.03 which was released out on 6 22 2017, EJ050NA-01G supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 120.7(W)×76.3(H)×3.3(D) mm, viewing area size of 110.6(W)×67.6(H) mm, with surface treament of Clear, net weight of 58.5g (Typ.). As a TN, Normally White, Transmissive LCM product, EJ050NA-01G can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. EJ050NA-01G utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/10.4/16.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
EJ050NA-01G |
|
Panel Brand |
Chimei Innolux |
|
Panel Size |
5.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×480 , WVGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
108(W)×64.8(H) mm |
|
Bezel Opening |
110.6(W)×67.6(H) mm |
|
Outline Size |
120.7(W)×76.3(H) ×3.3(D) mm |
|
Surface |
Clear |
|
Brightness |
350 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
10/15 (Typ.)(Tr/Td) |
|
Display Colors |
16.7M 50% NTSC |
|
Lamp Type |
7S2P WLED , 15K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
58.5g (Typ.) |
|
Signal Interface |
Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
|
Input Voltage |
3.3/10.4/16.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

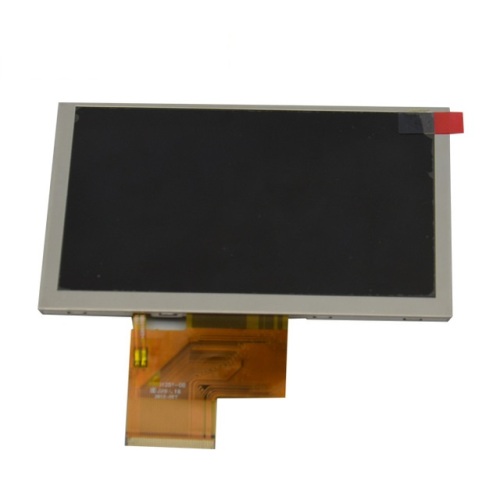

Product Picture:
