LQ035NC111 ChiHsin 3.5 inch LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
LQ035NC111 is a 3.5 inch diagonal a-Si ChiHsin TFT-LCD Panel without Touch Screen. This ChiHsin TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. LQ035NC111 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 76.9(W)×63.9(H)×4.56(D) mm, viewing area size of 72.00(W)×54.56(H) mm, with surface treament of Antiglare (Haze 20%), net weight of 40.0g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ035NC111 can provides 200 cd/m² display brightness 400:1 transimissive contrast ratio, 60/60/50/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms., thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. LQ035NC111 utilizes Digital RGB (8/24-bit) + SPI, CCIR601/656 as it's signal inputting systerm, which connected by 54 pins FPC with power supply voltage of 3.3V (Typ.)(VCC).
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
LQ035NC111 |
|
Panel Brand |
ChiHsin |
|
Panel Size |
3.5" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
320(RGB)×240 , QVGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
70.08(W)×52.56(H) mm |
|
Bezel Opening |
72.00(W)×54.56(H) mm |
|
Outline Size |
76.9(W)×63.9(H) ×4.56(D) mm |
|
Surface |
Antiglare (Haze 20%) |
|
Brightness |
300 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
Viewing Angle |
60/60/50/55 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
10/15 (Typ.)(Tr/Td) |
|
Display Colors |
16.7M 60% NTSC |
|
Touch Screen |
without |
|
Panel Weight |
40.0g (Typ.) |
|
Signal Interface |
Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC |
|
Input Voltage |
3.3V (Typ.)(VCC) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

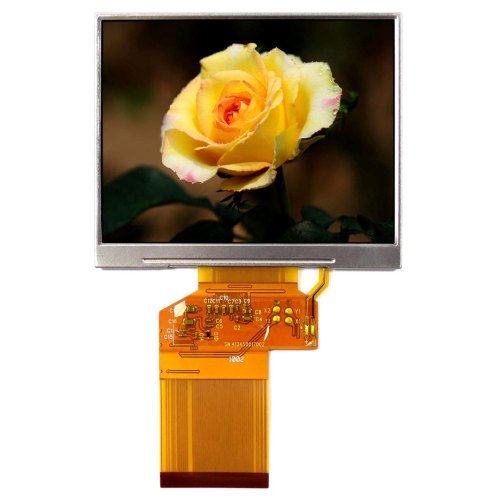

Product Picture:
