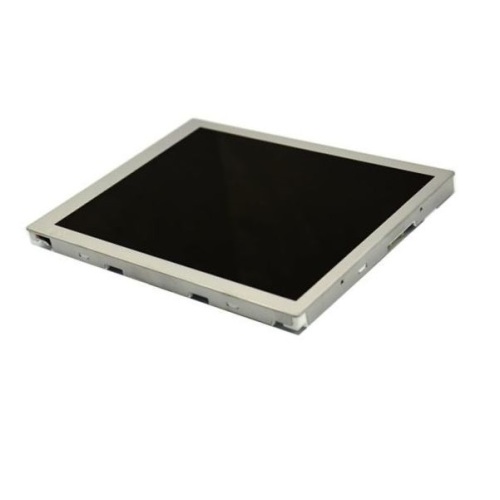

6.5 inch LVDS TFT Display G065VN01 V.2 640(RGB)×480

G065VN01 V2 (Alias: G065VN01 V.2) is a 6.5 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. This AUO TFT-LCD is a 6.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver1.5 which was released out on 8 7 2014, G065VN01 V2 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 132.48(W)×99.36(H) mm, outline size of 153(W)×118(H)×11.2(D) mm, viewing area size of 135.9(W)×102.8(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), Antireflection, net weight of 170g (Typ.). As a TN, Normally White, Transmissive LCM product, G065VN01 V2 can provides 800 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 55% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G065VN01 V2 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Work with DVI & VGA signal input controller

Mechanical Characteristics(Drawing)

Application

Packing Information

Carton Package

 Max. capacity: 80 TFT-LCD module per carton (40pcs * 2 layers)

Max. weight: 16.6 kg per carton

Outside dimension of carton: 425(L)mm* 386(W)mm* 430(H)mm
