HDMI signal input LCD controller for TTL TFT-LCD
Your message must be between 20 to 2000 characters
Contact NowTY2660T-HDMI-AT070TN94 is a high-performance and high stability of industrial LCD driver board.With wider operating temperature, longer of life, offers HDMI input, using Taiwan Realtek (Realtek) processing drive chip RTD2660,it can driver 50PIN CMOS TTL LCD,such as AT070TN94,ZJ050NA-08C,AT056TN52 V.3,AT065TN14,AT070TN92,AT070TN94,EJ080NA-05B,AT080TN64.The maximum resolution it support is 1920X1080
Main parameter
|
IC solution |
RTD2660 |
|
|
Signal input |
HDMI |
|
|
Supported LCD |
interface |
50PIN CMOS TTL LCD |
|
resolution |
Min 640X480,Max 1920X1080 |
|
|
Power supply |
Input voltage |
DC 12V |
|
Voltage out to LCD |
3.3V/5V |
|
|
Mode |
Low power and standby mode |
|
|
Standby Power |
<1W |
|
|
OSD language |
Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, |
|
|
OSD Manu |
AUTO,MENU,LEFT-,RIGHT+, EXIT/SELECT, ,ON/OFF |
|
- DC 12V input
- Support one HDMI signal input
- Support 50PIN CMOS TTL LCD
- Automatic dual-channel signal detection.
- Stable and wide OPERATING TEMPERATURE 20℃ ~ 80℃.
- Using anti-high temperature electronic components.
- With overcurrent and overvoltage protection.
- With ESD protection.
- ROHS
- Supported resolution 640X480(VGA),800X480(WVGA),800*600(SVGA), 1024*768(XGA), 1280*1024(SXGA), 1360*768(WXGA), 1440*900 (WXGA+),1680*1050(WSXGA+),1920*1080(WSUVGA+)

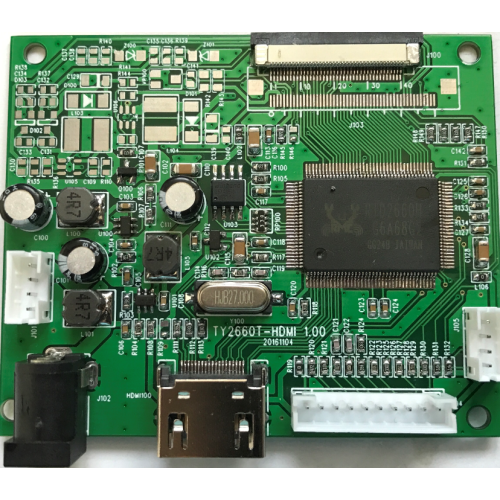

Board Picture
Board Dimension
Application
