HDMI signal input LCD controller for LVDS TFT-LCD
Your message must be between 20 to 2000 characters
Contact NowTYG084SN05V9-HDMI is a high-performance and high stability of industrial LCD driver board.With wider operating temperature, longer of life, offers HDMI input, using Taiwan Realtek (Realtek) processing drive chip RTD2660,it can drive single, dual-channel LVDS interface LCD ,such as G065VN01V2,It can drive G065VN01V2, G084SN05V9, G101STN01.2,G104XVN01.0,G121XN01 V0 etc,the maximum resolution it support is 1920X1080
Main parameter
|
IC solution |
RTD2660 |
|
|
Signal input |
HDMI |
|
|
Supported LCD |
interface |
single, dual-channel LVDS LCD |
|
resolution |
Min 640X480,Max 1920X1080 |
|
|
Power supply |
Input voltage |
DC 12V |
|
Voltage out to LCD |
3.3V/5V |
|
|
Mode |
Low power and standby mode |
|
|
Standby Power |
<1W |
|
|
OSD language |
Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, |
|
|
OSD Manu |
AUTO,MENU,LEFT-,RIGHT+, EXIT/SELECT, ,ON/OFF |
|
- DC 12V input
- Support one VGA,one DVI,signal input
- Support single, dual-channel 8-bit or6-bitLVDS LCD
- Automatic dual-channel signal detection.
- Stable and wide OPERATING TEMPERATURE 20℃ ~ 80℃.
- Using anti-high temperature electronic components.
- With overcurrent and overvoltage protection.
- With ESD protection.
- ROHS
- Supported resolution 640X480(VGA),800X480(WVGA),800*600(SVGA), 1024*768(XGA), 1280*1024(SXGA), 1360*768(WXGA), 1440*900 (WXGA+),1680*1050(WSXGA+),1920*1080(WSUVGA+)

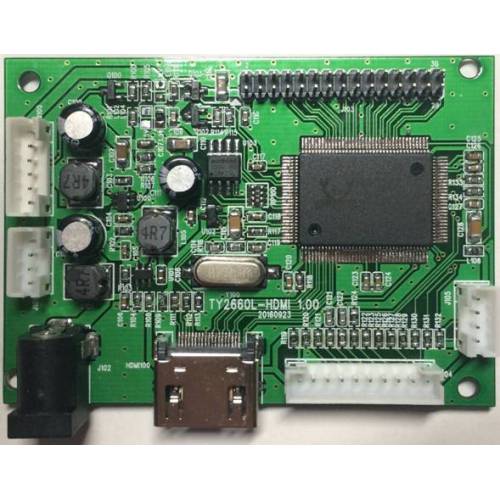

Board Picture
Board Dimension
Application
