DVI signal input LCD controller for LVDS TFT-LCD
Your message must be between 20 to 2000 characters
Contact Now
TYG070VW01-DVI-2 is a high-performance and high stability of industrial LCD driver board.With wider operating temperature, longer of life, offers VGA, DVI input, using Taiwan Realtek (Realtek) processing drive chip RTD2271,it can drive single, dual-channel LVDS interface LCD ,the maximum resolution it support is 1920X1080,such as G070VW01 V0, G156XW01 V.3,G156XW01 V1,G156HTN01.0,G170EG01 V1,G185XW01 V1,G185XW01 V2,G190EG01 V1,etc
Main parameter
|
IC solution |
RTD2271 |
|
|
Signal input |
VGA/DVI |
|
|
Supported LCD |
interface |
single, dual-channel LVDS LCD |
|
resolution |
Min 640X480,Max 1920X1080 |
|
|
Power supply |
Input voltage |
DC 12V |
|
Voltage out to LCD |
3.3V/5V |
|
|
Mode |
Low power and standby mode |
|
|
Standby Power |
<1W |
|
|
OSD language |
Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Japanese, Korean |
|
|
OSD Manu |
AUTO,MENU,LEFT-,RIGHT+, EXIT/SELECT, ,ON/OFF |
|
- DC 12V input
- Support one VGA,one DVI,signal input
- Support single, dual-channel 8-bit or6-bitLVDS LCD
- Automatic dual-channel signal detection.
- Stable .
- Using anti-high temperature electronic components.
- With overcurrent and overvoltage protection.
- With ESD protection.
- ROHS
- Supported resolution 640X480(VGA),800X480(WVGA),800*600(SVGA), 1024*768(XGA), 1280*1024(SXGA), 1360*768(WXGA), 1440*900 (WXGA+),1680*1050(WSXGA+),1920*1080(WSUVGA+)

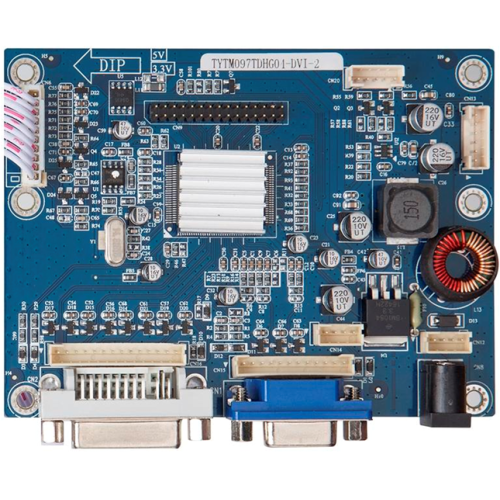

Board Picture
