AM-1024768R2TNQW-T00H is a 12.1 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen PCAP. This Ampire TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20140422 which was released out on 4 22 2014, AM-1024768R2TNQW-T00H supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 279(W)×209(H)×11.2(D) mm. As a TN, Normally White, Transmissive LCM product, AM-1024768R2TNQW-T00H can provides 850 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AM-1024768R2TNQW-T00H utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	AM-1024768R2TNQW-T00H
Panel Brand	AMPIRE
Panel Size	12.1"
Resolution	1024(RGB)×768, XGA, 105PPI
Display Area	245.76(W)×184.32(H) mm
Outline Size	279(W)×209(H) ×11.2(D) mm
Brightness	850 cd/m² (Typ.)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Colors	262K/16.7M
Frequency	60Hz
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Contrast Ratio	800:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	16 (Typ.)(Tr+Td)
Lamp Type	10S5P WLED , 50K hours , Without Driver
Touch Screen	PCAP
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Product Picture:

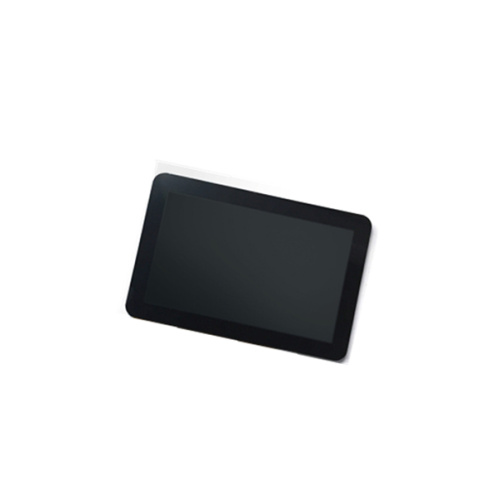

AM-1024768R2TNQW-T00H
