AM-1024768R2TNQW-00H AMPIRE 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-1024768R2TNQW-00H is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Ampire TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20140422 which was released out on 4 22 2014, AM-1024768R2TNQW-00H supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 279(W)×209(H)×9(D) mm, with surface treament of Antiglare, Hard coating (3H). As a TN, Normally White, Transmissive LCM product, AM-1024768R2TNQW-00H can provides 1000 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AM-1024768R2TNQW-00H utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-1024768R2TNQW-00H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
12.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1024(RGB)×768, XGA, 105PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
245.76(W)×184.32(H) mm |
|
Outline Size |
279(W)×209(H) ×9(D) mm |
|
Surface |
Antiglare, Hard coating (3H) |
|
Brightness |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
16 (Typ.)(Tr+Td) |
|
Display Colors |
262K/16.7M |
|
Lamp Type |
10S5P WLED , 50K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

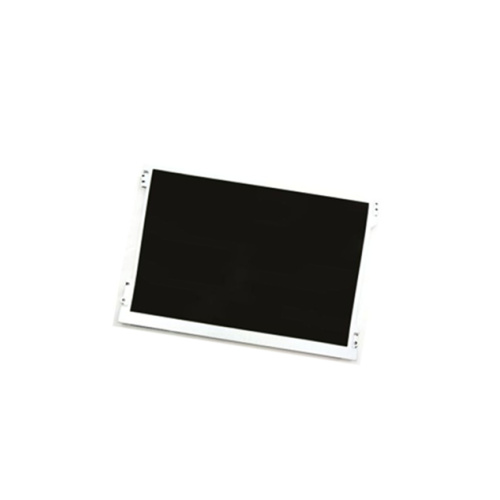

Product Picture:
