AM-1024768Y2TZQW-A1H AMPIRE 10.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
The AM-1024768Y2TZQW-A1H is a 10.4 inch diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . This Ampire TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AM-1024768Y2TZQW-A1H supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 236(W)×174.3(H)×10.4(D) mm, viewing area size of 213.2(W)×158.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of TBD. As a IPS, Normally Black, Transmissive LCM product, AM-1024768Y2TZQW-A1H can provides 1000 cd/m² display brightness 900:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. AM-1024768Y2TZQW-A1H utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-1024768Y2TZQW-A1H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
10.4" |
|
Resolution |
1024(RGB)×768, XGA, 123PPI |
|
Display Area |
211.2(W)×158.4(H) mm |
|
Outline Size |
236(W)×174.3(H) ×10.4(D) mm |
|
Brightness |
1000 cd/m² (Typ.) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Best View on |
Symmetry |
|
Display Colors |
16.2M |
|
Frequency |
60Hz |
|
Weight |
TBD |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
213.2(W)×158.4(H) mm |
|
Surface |
Antiglare, Hard coating (3H) |
|
Contrast Ratio |
900:1 (Typ.) (TM) |
|
Display Mode |
IPS, Normally Black, Transmissive |
|
Response Time |
30 (Typ.)(Tr+Td) |
|
Lamp Type |
WLED , 30K hours , With LED Driver |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (1 ch, 8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

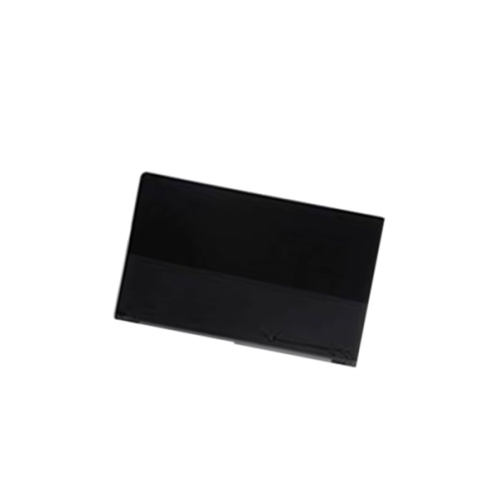

Product Picture:
