AM-1024768MTMQW-T01H AMPIRE 10.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
AM-1024768MTMQW-T01H is a 10.4" diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, With LED Driver , touch screen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This Ampire TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AM-1024768MTMQW-T01H supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 236(W)×174.3(H)×9.5(D) mm, with surface treament of Antiglare, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-1024768MTMQW-T01H can provides 400 cd/m² display brightness, 75/75/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 47% (NTSC). This product adopted 3S13P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AM-1024768MTMQW-T01H utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-1024768MTMQW-T01H |
|
Brand |
AMPIRE |
|
Diagonal Size |
10.4 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
1024(RGB)×768 [XGA] 123PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
211.2(H)×158.4(V) mm |
|
Outline Dim. |
236(H)×174.3(V) ×9.5(D) mm |
|
Treatment |
Antiglare |
|
Luminance |
400 cd/m² (Typ.) |
|
Response Time |
25 (Typ.)(Tr/Td) |
|
Viewing Angle |
75/75/60/80 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K 47% NTSC |
|
Light Source |
WLED [3S13P] , 20K hours , With LED Driver |
|
Weight |
TBD |
|
Frame Rate |
60Hz |
|
Touch Panel |
4-wire Resistive Touch |
|
Interface Type |
LVDS (1 ch, 6-bit) , 30 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

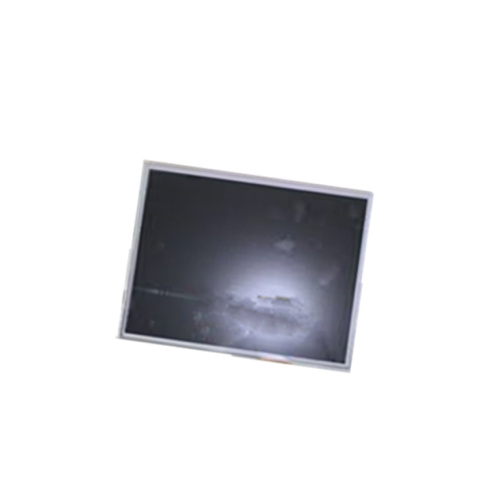

Product Picture:
