AM-19201200CTZQW-00 AMPIRE 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
AM-19201200CTZQW-00 is a 10.1" diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 65°C , a storage temperature range of -20 ~ 65°C . This Ampire TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-19201200CTZQW-00 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.576(W)×135.36(H) mm, outline size of 244.8(W)×155.3(H)×7(D) mm. As a AHVA, Normally Black, Transmissive LCM product, AM-19201200CTZQW-00 can provides 1000 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 49% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. AM-19201200CTZQW-00 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-19201200CTZQW-00 |
|
Manufacturer |
AMPIRE |
|
Screen Size |
10.1 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
1920(RGB)×1200 (WUXGA) 225PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
216.576 × 135.36 (H×V) |
|
Outline(mm) |
244.8 × 155.3 × 7 (H×V×D) |
|
Luminance |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Response |
25 (Typ.)(Tr+Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
AHVA, Normally Black, Transmissive |
|
Color Depth |
16.7M 49% NTSC |
|
Backlight |
WLED , 50K hours , With LED Driver |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (2 ch, 8-bit) , 45 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 65 °C Operating Temp.: -20 ~ 65 °C |

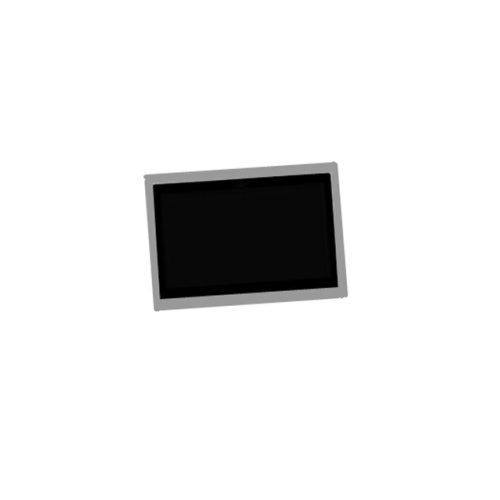

Product Picture:
