AM-1280800N2TZQW-T48H AMPIRE 10.1 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Ampire Co., Ltd. (hereafter called AMPIRE) AM-1280800N2TZQW-T48H is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen PCAP. This Ampire TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20141118 which was released out on 11 18 2014, AM-1280800N2TZQW-T48H supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 247(W)×166(H)×9.55(D) mm, viewing area size of 220.76(W)×140.4(H) mm, net weight of TBD. As a IPS, Normally Black, Transmissive LCM product, AM-1280800N2TZQW-T48H can provides 850 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted 7S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AM-1280800N2TZQW-T48H utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	AM-1280800N2TZQW-T48H
Panel Brand	AMPIRE
Panel Size	10.1"
Resolution	1280(RGB)×800, WXGA, 149PPI
Display Area	216.96(W)×135.6(H) mm
Outline Size	247(W)×166(H) ×9.55(D) mm
Brightness	850 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 45% NTSC
Frequency	60Hz
Weight	TBD
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	220.76(W)×140.4(H) mm
Contrast Ratio	800:1 (Typ.) (TM)
Display Mode	IPS, Normally Black, Transmissive
Response Time	25 (Typ.)(Tr+Td)
Lamp Type	7S6P WLED , 50K hours , Without Driver
Touch Screen	PCAP
Signal Interface	LVDS (1 ch, 8-bit) , 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

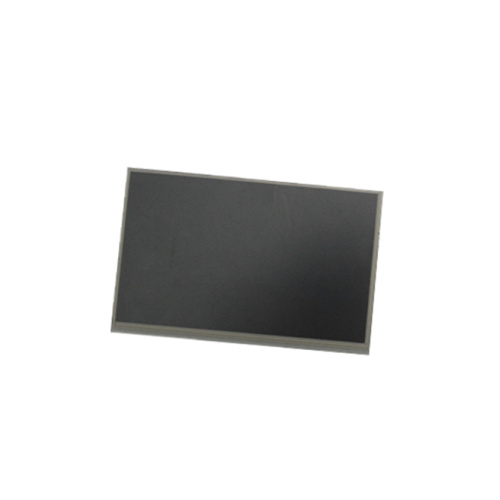

Product Picture:

AM-1280800N2TZQW-T48H
