AM-1024600LTMQW-T00H AMPIRE 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-1024600LTMQW-T00H is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen 4-wire Resistive Touch. This Ampire TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20120416 which was released out on 4 16 2012, AM-1024600LTMQW-T00H supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 235(W)×145.8(H)×9(D) mm, viewing area size of 225.92(W)×128.48(H) mm, with surface treament of Antiglare, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-1024600LTMQW-T00H can provides 200 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 54% (NTSC). This product adopted 6S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AM-1024600LTMQW-T00H utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-1024600LTMQW-T00H |
|
Manufacturer |
AMPIRE |
|
Screen Size |
10.1 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
1024(RGB)×600 (WSVGA) 117PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
222.72 × 125.28 (H×V) |
|
Outline(mm) |
235 × 145.8 × 9 (H×V×D) |
|
Bezel Area(mm) |
225.92 × 128.48 (H×V) |
|
Treatment |
Antiglare |
|
Luminance |
200 cd/m² (Typ.) |
|
Contrast Ratio |
500 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/70/50 (Typ.)(CR≥10) |
|
Response |
5/20 (Typ.)(Tr/Td) ms |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K 54% NTSC |
|
Backlight |
6S6P WLED , 20K hours , With LED Driver |
|
Mass |
TBD |
|
Refresh Rate |
60Hz |
|
Touchscreen |
4-wire Resistive Touch |
|
Signal Type |
LVDS (1 ch, 6-bit) , 30 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 70 °C Operating Temp.: -5 ~ 60 °C |

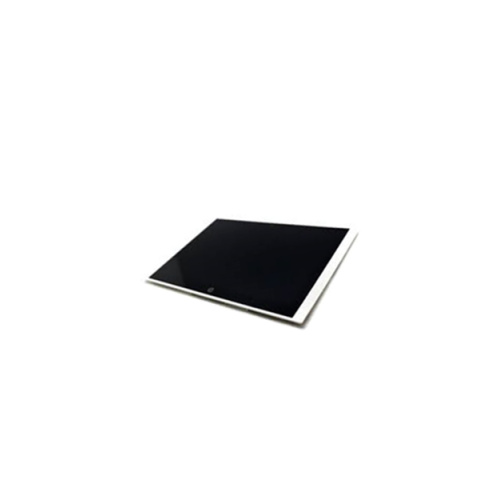

Product Picture:
