AM-800600MJTNQW-T02H is a 8.4 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 8.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20131205 which was released out on 12 5 2013, AM-800600MJTNQW-T02H supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 203(W)×145.5(H)×13.35(D) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-800600MJTNQW-T02H can provides 300 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 12S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. AM-800600MJTNQW-T02H utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-800600MJTNQW-T02H |
|
Brand |
AMPIRE |
|
Diagonal Size |
8.4 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)×600 [SVGA] 119PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
170.4(H)×127.8(V) mm |
|
Outline Dim. |
203(H)×145.5(V) ×13.35(D) mm |
|
Luminance |
300 cd/m² (Typ.) |
|
Contrast Ratio |
600:1 (Typ.) (TM) |
|
Response Time |
8 (Typ.)(Tr+Td) |
|
Viewing Angle |
75/75/60/70 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K |
|
Light Source |
WLED [12S4P] , 50K hours , With LED Driver |
|
Weight |
TBD |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP |
|
Interface Type |
LVDS (1 ch, 6-bit) , 20 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

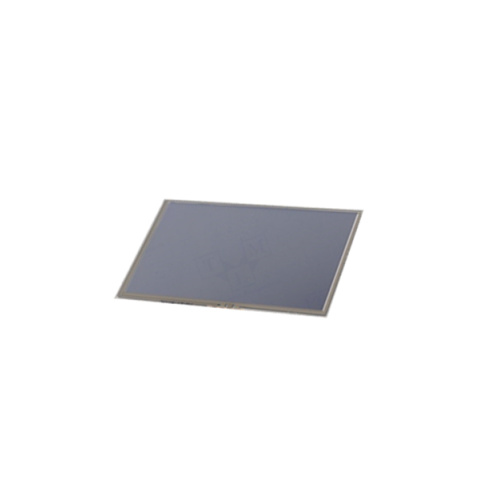

Product Picture:
