AM-800480CTZQW-A5H AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480CTZQW-A5H is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20180308 which was released out on 3 8 2018, AM-800480CTZQW-A5H supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104.4(H)×11.61(D) mm, viewing area size of 15.48(W)×93.85(H) mm. As a TN, Normally White, Transmissive LCM product, AM-800480CTZQW-A5H can provides 1500 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 58% (NTSC). This product adopted 6S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. AM-800480CTZQW-A5H utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-800480CTZQW-A5H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
7.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×480, WVGA, 133PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
152.4(W)×91.44(H) mm |
|
Bezel Opening |
15.48(W)×93.85(H) mm |
|
Outline Size |
165(W)×104.4(H) ×11.61(D) mm |
|
Brightness |
1500 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Display Colors |
262K 58% NTSC |
|
Lamp Type |
6S5P WLED , 50K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (1 ch, 6-bit) , 20 pins Connector |
|
Input Voltage |
12.0V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |

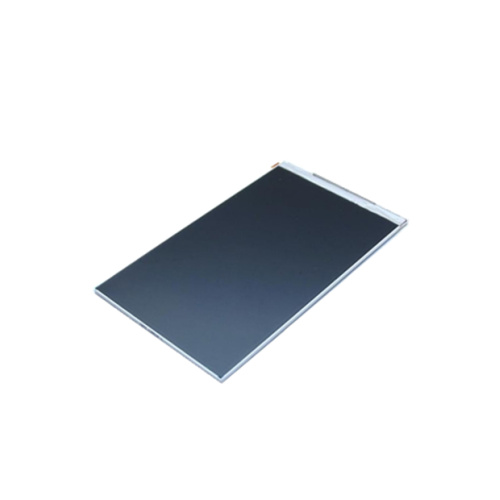

Product Picture:
