AM-1024600K7TMQW-T61H AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-1024600K7TMQW-T61H is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , touch screen PCAP. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-1024600K7TMQW-T61H supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 165.5(W)×104.44(H)×9.22(D) mm, with surface treament of Clear, Hard coating, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-1024600K7TMQW-T61H can provides 425 cd/m² display brightness 700:1 transimissive contrast ratio, 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 5S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. AM-1024600K7TMQW-T61H utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-1024600K7TMQW-T61H |
|
Brand |
AMPIRE |
|
Diagonal Size |
7.0 inch |
|
Pixel Format |
1024(RGB)×600 [WSVGA] 169PPI |
|
Active Area |
153.6(H)×90(V) mm |
|
Luminance |
425 cd/m² (Typ.) |
|
View Direction |
6 o'clock |
|
Viewing Angle |
75/75/70/75 (Typ.)(CR≥10) |
|
Support Color |
262K/16.7M |
|
Weight |
TBD |
|
Frame Rate |
60Hz |
|
Type |
a-Si TFT-LCD , LCM |
|
Configuration |
RGB Vertical Stripe |
|
Outline Dim. |
165.5(H)×104.44(V) ×9.22(D) mm |
|
Treatment |
Clear, Hard coating |
|
Contrast Ratio |
700:1 (Typ.) (TM) |
|
Response Time |
20/20 (Typ.)(Tr/Td) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Light Source |
WLED [5S3P] , 50K hours , With LED Driver |
|
Touch Panel |
PCAP |
|
Interface Type |
LVDS (1 ch, 6/8-bit) 20 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

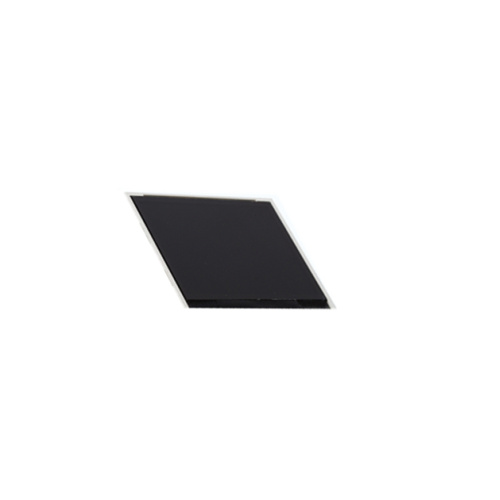

Product Picture:
