AM-800480RCTZQW-06H AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480RCTZQW-06H is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C . This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-800480RCTZQW-06H supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×106(H)×9.06(D) mm, viewing area size of 155.3(W)×94.3(H) mm. As a TN, Normally White, Transmissive LCM product, AM-800480RCTZQW-06H can provides 500 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/65/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 5S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AM-800480RCTZQW-06H utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-800480RCTZQW-06H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
7.0" |
|
Resolution |
800(RGB)×480, WVGA, 133PPI |
|
Display Area |
152.4(W)×91.44(H) mm |
|
Outline Size |
165(W)×106(H) ×9.06(D) mm |
|
Brightness |
500 cd/m² (Typ.) |
|
Viewing Angle |
70/70/65/65 (Typ.)(CR≥10) |
|
Display Colors |
262K |
|
Frequency |
60Hz |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
155.3(W)×94.3(H) mm |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
5/11 (Typ.)(Tr/Td) |
|
Lamp Type |
5S3P WLED , 50K hours , Without Driver |
|
Touch Screen |
Without |
|
Signal Interface |
Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |

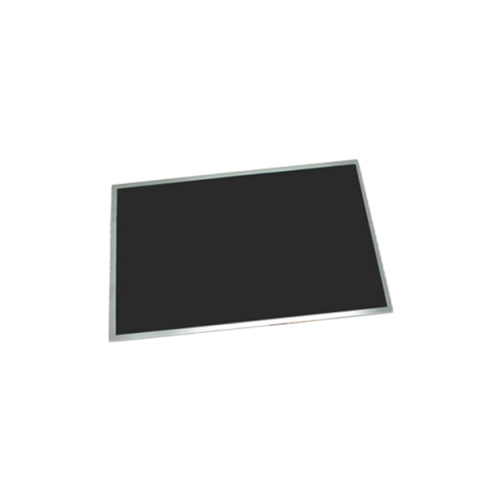

Product Picture:
