AM-800480STMQW-TW0H AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480STMQW-TW0H is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen 4-wire Resistive Touch. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.Based on datasheet with version of 20091019 which was released out on 10 19 2009, AM-800480STMQW-TW0H supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104.44(H)×10.72(D) mm. As a TN, Normally White, Transmissive LCM product, AM-800480STMQW-TW0H can provides 280 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/11 (Typ.)(Tr/Td) ms., thus presenting a palette of 65K colors. This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AM-800480STMQW-TW0H utilizes 8/9/16/18-bit 6800/8080 parallel as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-800480STMQW-TW0H |
|
Brand |
AMPIRE |
|
Diagonal Size |
7.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)×480 [WVGA] 133PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
152.4(H)×91.44(V) mm |
|
Outline Dim. |
165(H)×104.44(V) ×10.72(D) mm |
|
Luminance |
280 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
View Direction |
6 o'clock |
|
Response Time |
5/11 (Typ.)(Tr/Td) |
|
Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
65K |
|
Light Source |
WLED [3S8P] , 20K hours , With LED Driver |
|
Frame Rate |
60Hz |
|
Touch Panel |
4-wire Resistive Touch |
|
Interface Type |
8/9/16/18-bit 6800/8080 parallel , 40 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

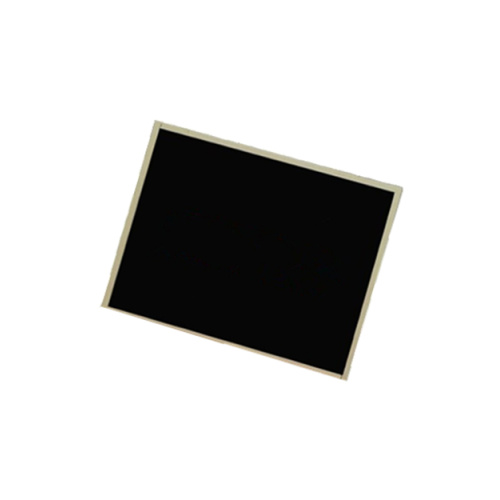

Product Picture:
