AM-800480RSTMQW-TBCH AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-800480RSTMQW-TBCH is a 7.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20150401 which was released out on 4 1 2015, AM-800480RSTMQW-TBCH supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 174(W)×118(H)×11.99(D) mm, viewing area size of 155.3(W)×94.3(H) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-800480RSTMQW-TBCH can provides 425 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, With LED Driver. AM-800480RSTMQW-TBCH utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-800480RSTMQW-TBCH |
|
Manufacturer |
AMPIRE |
|
Screen Size |
7.0 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
800(RGB)×480 (WVGA) 133PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
152.4 × 91.44 (H×V) |
|
Outline(mm) |
174 × 118 × 11.99 (H×V×D) |
|
Bezel Area(mm) |
155.3 × 94.3 (H×V) |
|
Luminance |
425 cd/m² (Typ.) |
|
Contrast Ratio |
400 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/70/60 (Typ.)(CR≥10) |
|
Response |
5/11 (Typ.)(Tr/Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K |
|
Backlight |
3S10P WLED , 40K hours , With LED Driver |
|
Mass |
TBD |
|
Refresh Rate |
60Hz |
|
Touchscreen |
PCAP |
|
Signal Type |
LVDS (1 ch, 6-bit) , 40 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

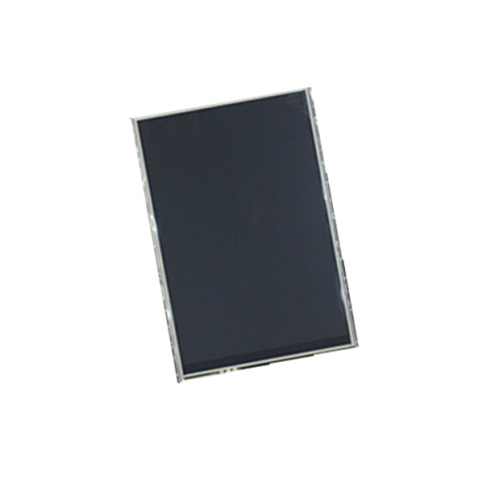

Product Picture:
