AM-1024600K5TMQW-00H AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-1024600K5TMQW-00H is a 7.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, without touch screen. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20160328 which was released out on 3 28 2016, AM-1024600K5TMQW-00H supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 165.5(W)×104.44(H)×9.46(D) mm, viewing area size of 156.2(W)×92.6(H) mm, with surface treament of Glare (Haze 0%), Hard coating, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-1024600K5TMQW-00H can provides 500 cd/m² display brightness 700:1 transimissive contrast ratio, 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 5S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. AM-1024600K5TMQW-00H utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-1024600K5TMQW-00H |
|
Manufacturer |
AMPIRE |
|
Screen Size |
7.0 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
1024(RGB)×600 (WSVGA) 169PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
153.6 × 90 (H×V) |
|
Outline(mm) |
165.5 × 104.44 × 9.46 (H×V×D) |
|
Bezel Area(mm) |
156.2 × 92.6 (H×V) |
|
Treatment |
Glare (Haze 0%), Hard coating |
|
Luminance |
500 cd/m² (Typ.) |
|
Contrast Ratio |
700 : 1 (Typ.) (TM) |
|
Viewing Angle |
75/75/70/75 (Typ.)(CR≥10) |
|
Response |
20/20 (Typ.)(Tr/Td) ms |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
16.7M |
|
Backlight |
5S3P WLED , 30K hours , With LED Driver |
|
Mass |
TBD |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 8-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

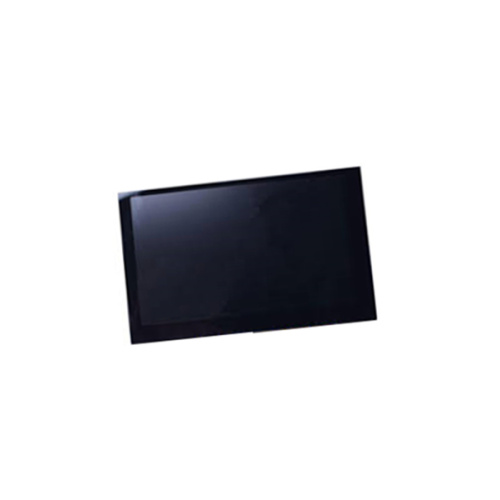

Product Picture:
