AM-800480STMQW-T00 AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-800480STMQW-T00 is a 7.0" diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, without backlight driver, touch screen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-800480STMQW-T00 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104.44(H)×7.56(D) mm, viewing area size of 155.3(W)×94.30(H) mm. As a TN, Normally White, Transmissive LCM product, AM-800480STMQW-T00 can provides 280 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AM-800480STMQW-T00 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-800480STMQW-T00 |
|
Panel Brand |
AMPIRE |
|
Panel Size |
7.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×480, WVGA, 133PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
152.4(W)×91.44(H) mm |
|
Bezel Opening |
155.3(W)×94.30(H) mm |
|
Outline Size |
165(W)×104.44(H) ×7.56(D) mm |
|
Brightness |
280 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
5/11 (Typ.)(Tr/Td) |
|
Display Colors |
262K |
|
Lamp Type |
3S8P WLED , 20K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
4-wire Resistive Touch |
|
Signal Interface |
Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

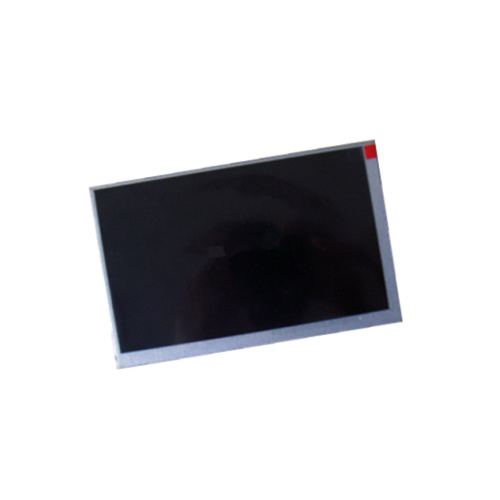

Product Picture:
