AM-800480ACTMQW-00H AMPIRE 6.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
The AM-800480ACTMQW-00H is a 6.5 inch diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C .This Ampire TFT-LCD is a 6.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-800480ACTMQW-00H supports display 800(RGB)×480 (WVGA) with aspect ratio of 17:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 143.4(W)×76.704(H) mm, outline size of 155.2(W)×89.4(H) mm, viewing area size of 146.2(W)×79.504(H) mm, with surface treament of Antiglare, net weight of 126.9g (Typ.). As a TN, Normally White, Transmissive LCM product, AM-800480ACTMQW-00H can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AM-800480ACTMQW-00H utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 49 pins FPC with power supply voltage of 3.3/10.4/15.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-800480ACTMQW-00H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
6.5" |
|
Resolution |
800(RGB)×480, WVGA, 145PPI |
|
Display Area |
143.4(W)×76.704(H) mm |
|
Outline Size |
155.2(W)×89.4(H) mm |
|
Brightness |
500 cd/m² (Typ.) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Display Colors |
16.7M |
|
Frequency |
60Hz |
|
Weight |
126.9g (Typ.) |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
146.2(W)×79.504(H) mm |
|
Surface |
Antiglare |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
10/15 (Typ.)(Tr/Td) |
|
Lamp Type |
3S8P WLED , 20K hours , Without Driver |
|
Touch Screen |
Without |
|
Signal Interface |
Parallel RGB (1 ch, 8-bit) , 49 pins FPC |
|
Input Voltage |
3.3/10.4/15.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
|
Environment |
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |

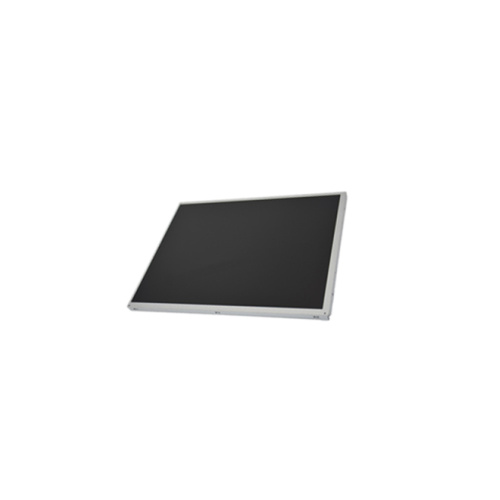

Product Picture:
