AM-640480GHTNQW-03H-F AMPIRE 5.7 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-640480GHTNQW-03H-F is a 5.7 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, without touch screen. This Ampire TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20110509 which was released out on 5 9 2011, AM-640480GHTNQW-03H-F supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 131(W)×102.2(H)×11.8(D) mm, viewing area size of 118.2(W)×98.4(H) mm, with surface treament of Antiglare, Hard coating (3H). As a TN, Normally White, Transmissive LCM product, AM-640480GHTNQW-03H-F can provides 500 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/65/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 3S7P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM-640480GHTNQW-03H-F utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-640480GHTNQW-03H-F |
|
Manufacturer |
AMPIRE |
|
Screen Size |
5.7 inch |
|
Pixel Number |
640(RGB)×480 (VGA) 141PPI |
|
Active Area(mm) |
115.2 × 86.4 (H×V) |
|
Bezel Area(mm) |
118.2 × 98.4 (H×V) |
|
Luminance |
500 (Typ.)(cd/m²) |
|
Viewing Angle |
75/75/65/65 (Typ.)(CR≥10) |
|
Color Depth |
262K 50% NTSC |
|
Refresh Rate |
60Hz |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
131 × 102.2 × 11.8 (H×V×D) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Contrast Ratio |
600 : 1 (Typ.) (TM) |
|
Work Mode |
TN, Normally White, Transmissive |
|
Response |
50 (Typ.)(Tr+Td) ms |
|
Backlight |
3S7P WLED , No Driver |
|
Touchscreen |
Without |
|
Signal Type |
Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

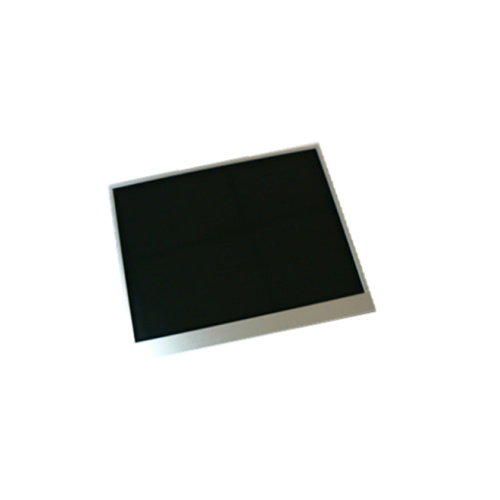

Product Picture:
