AM-640480GFTNQW-T00H AMPIRE 5.7 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-640480GFTNQW-T00H is a 5.7" diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, With LED Driver , touch screen PCAP. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This Ampire TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-640480GFTNQW-T00H supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 127(W)×98.43(H)×9.24(D) mm, viewing area size of 118.2(W)×89.2(H) mm. As a TN, Normally White, Transmissive LCM product, AM-640480GFTNQW-T00H can provides 430 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/50/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 49% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. AM-640480GFTNQW-T00H utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-640480GFTNQW-T00H |
|
Brand |
AMPIRE |
|
Diagonal Size |
5.7 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
640(RGB)×480 [VGA] 141PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
115.2(H)×86.4(V) mm |
|
Outline Dim. |
127(H)×98.43(V) ×9.24(D) mm |
|
Bezel Area |
118.2(H)×89.2(V) mm |
|
Luminance |
430 cd/m² (Typ.) |
|
Contrast Ratio |
250:1 (Typ.) (TM) |
|
Response Time |
50 (Typ.)(Tr+Td) |
|
Viewing Angle |
70/70/50/50 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K 49% NTSC |
|
Light Source |
WLED , With LED Driver |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP |
|
Interface Type |
TTL (1 ch, 6-bit) , 40 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

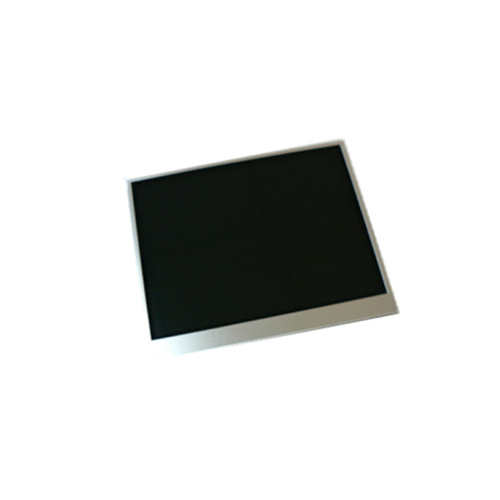

Product Picture:
