AM-640480GBTNQW-03H AMPIRE 5.7 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-640480GBTNQW-03H is a 5.7 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, without touch screen. This Ampire TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20110718 which was released out on 7 18 2011, AM-640480GBTNQW-03H supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 127(W)×99.63(H)×9.56(D) mm, viewing area size of 118.0(W)×89.2(H) mm, with surface treament of Antiglare, Hard coating (3H). As a TN, Normally White, Transmissive LCM product, AM-640480GBTNQW-03H can provides 1000 cd/m² display brightness 610:1 transimissive contrast ratio, 75/75/65/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. AM-640480GBTNQW-03H utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-640480GBTNQW-03H |
|
Brand |
AMPIRE |
|
Diagonal Size |
5.7 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
640(RGB)×480 [VGA] 141PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
115.2(H)×86.4(V) mm |
|
Outline Dim. |
127(H)×99.63(V) ×9.56(D) mm |
|
Bezel Area |
118.0(H)×89.2(V) mm |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
610:1 (Typ.) (TM) |
|
Response Time |
50 (Typ.)(Tr+Td) |
|
Viewing Angle |
75/75/65/65 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K 50% NTSC |
|
Light Source |
WLED [6S3P] , 30K hours , With LED Driver |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

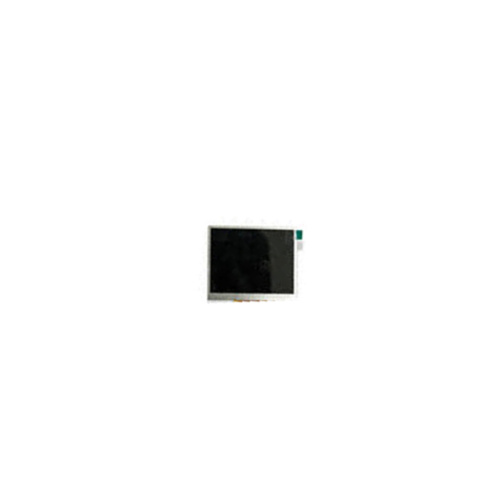

Product Picture:
